交流風扇
交流風扇 JHX12025

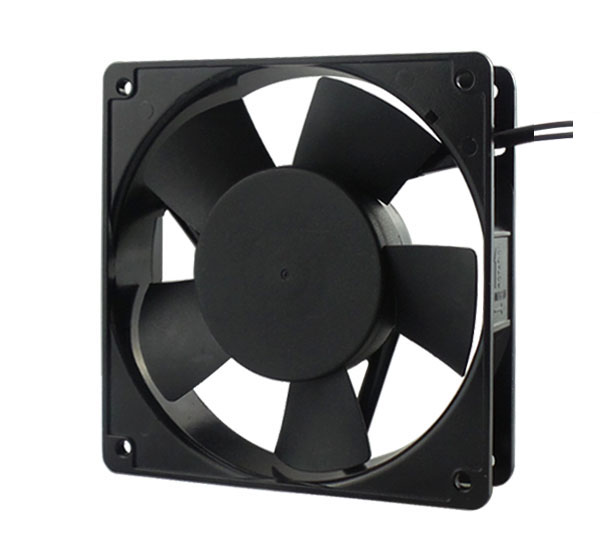

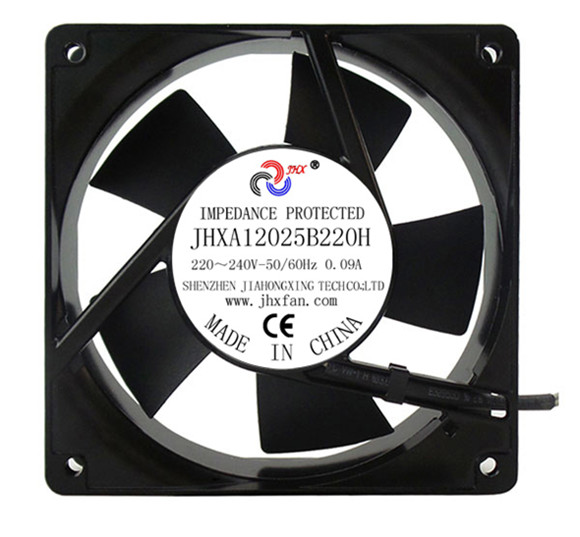

12025 尺寸/Size 120X120X25mm AC Axial Flow Fan

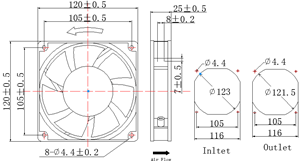

★Dimensions Drawing(外觀圖) ★Characteristic Curves(特性曲線)
★Specifications(規格) |
|||||||||
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓(V) |
Freq 頻率(Hz) |
Current
電流(A) |
Input Power 功率(W) |
Speed 轉速 (RPM) |
Air Flow 風量 (CFM) |
Static Pressure 靜壓(mm-H2O) |
Noise Level 噪音(dB-A) |
JHX12025X1H |
Sleeve/Ball |
110 |
50/60 |
0.15/0.14 |
13.0/11.0 |
2300/2700 |
35/37 |
3.80/5.0 |
36/38 |
JHX12025X1M |
Sleeve/Ball |
110 |
50/60 |
0.11/0.10 |
13.0/11.0 |
1800/2400 |
30/35 |
1.80/2.0 |
30/36 |
JHX12025X2H |
Sleeve/Ball |
220 |
50/60 |
0.09/0.08 |
18.0/14.0 |
2300/2700 |
35/37 |
3.80/5.0 |
36/38 |
JHX12025X2M |
Sleeve/Ball |
220 |
50/60 |
0.06/0.05 |
18.0/14.0 |
1800/2400 |
30/35 |
1.80/2.0 |
30/36 |
